Reference Part Number:
C1106-7036T, 1706-7029, C11067036T, 17067029
ACR # 130974R
HELLA # 351128071
WEBASTO # 82D0156250CA
FRIGAIR # 9202.0247
WEBASTO # 82D0156250MA

Specification:

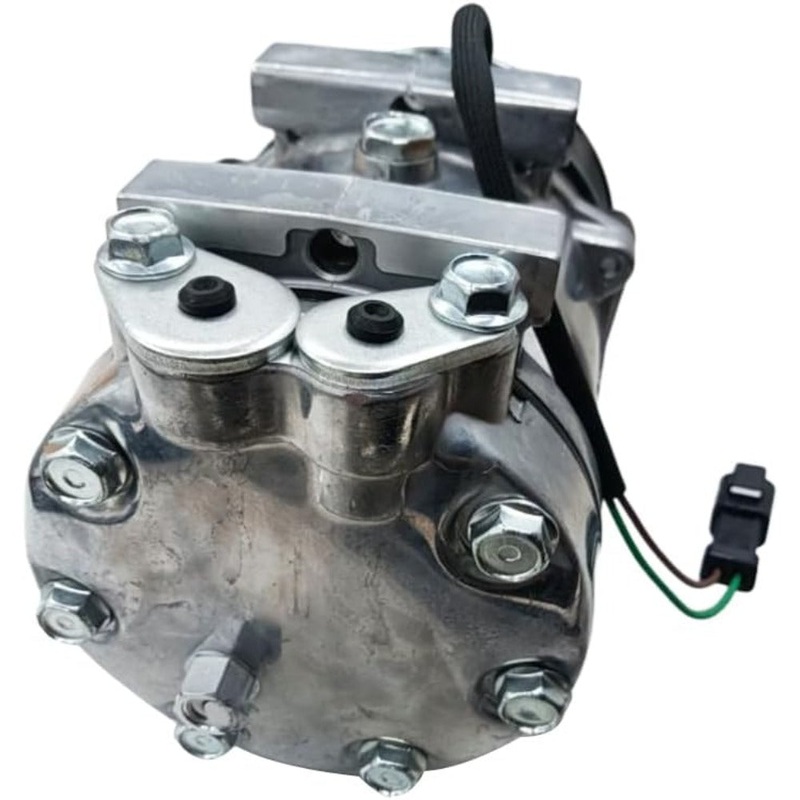

Sanden Number: 8279, SD7H15-8279
Compressor Family: SD7H15
Style: Sealed Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW
Cylinder Head: KG
Port Angle: Horizontal
Head Port Style: 3/4 X 7/8 Threaded Male Fittings
Clutch Diameter: 112 mm ~ 4 and 7/16 inches
Clutch Pulley Type: With Dust Cover
Belt Type: Serpentine
Number of Grooves: 4
Voltage: 12
Coil Connector: 2 Wire
Coil Position: 12 O’clock
Oil Type: SP15 or PAG 100
Oil Qty: 190cc
Refrigerant: R134a

Applications:
New Holland Tractor:
T4.105F, T4.105V, T4.65, T4.65V, T4.75, T4.75F, T4.75V, T4.85F, T4.85V, T4.95F, T4.95V,T4020, T4020V, T4030, T4030F, T4030N, T4030V, T4040, T4040F, T4040N, T4040V, T4050, T4050F, T4050N, T4050V, T4060F, T4060N, T4060V,T5040, T5050, T5060, T5070, TD5010, TD5020, TD5030, TD5050, TK4050, TK4050M, TK4060
